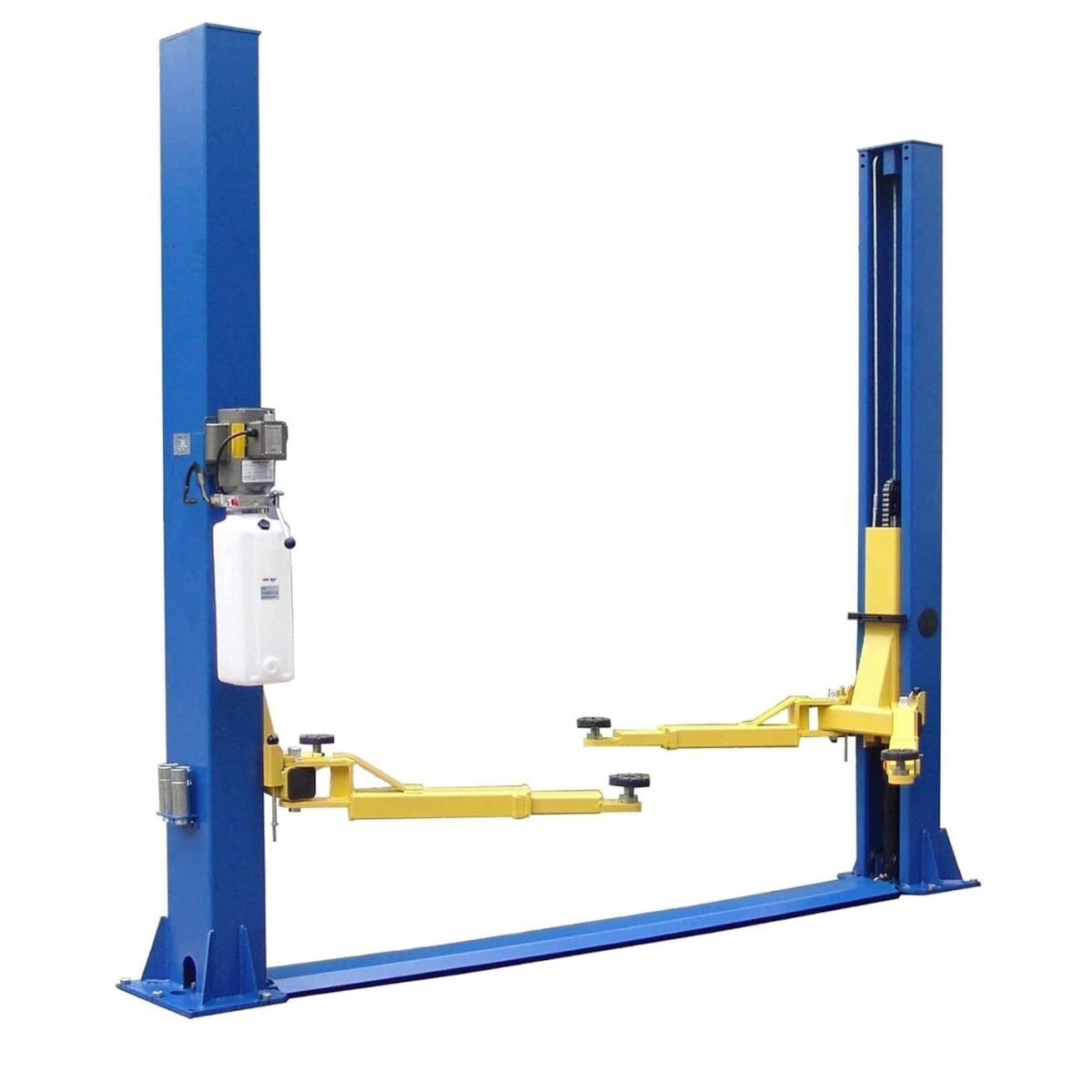

Auto Lift AL2-9K-FX 9,000 lb. 2 Post Floor Plate Car Lift

Description ‘ Symmetric design 9,000 lbs. lifting capacity. These auto lifts feature heavy-duty leaf chains, steel pulleys, and a high-strength cable equalization system—everything you’d expect from a quality lift. The low-profile ‘drop-in’ swivel pads have 1-1/2” adjustable height for flexibility. Designed with reduced overall width due to front-side power unit mounting, internal hose routing with integrated hose guards, and rubber door guards for vehicle protection. Key Specifications Capacity: 9,000 lbs. Overall Height: 111.9″ Width Overall (with Power Unit): 134.6″ Max Lift Height: 72″ Width Between Columns: 110.4″ Low Pad Height: 4″ Drive-Thru Clearance: 102″ Lifting Speed: 50 seconds Design: Symmetric Floor Type: Floor Plate Front & Rear Arm Reach (min/max): 31″ – 45″ Long Arm Reach (min/max): Same as front/rear Cable Diameter: 3/8″ Column Size: 7-1/4″ x 10-7/8″ Column Steel Thickness: 5 mm Carriage Steel Thickness: 5 mm Arm Steel Thickness: 6 mm Power: 220V, 20 AMP, Single Phase Shipping Weight: 1,265 lbs. Details Symmetric design with 9,000 lbs. lifting capacity Heavy-duty leaf chain, steel pulleys, and high-strength cable equalization system Low profile ‘drop-in’ swivel pads with 1-1/2” adjustable height Reduced overall width with front-side power unit mounting Internal hose routing with integrated hose guards Rubber door guards to protect vehicle doors Additional Information Load Capacity: 9,000 pounds Brand: Auto Lift Item Weight: 1,320 pounds (598.74 kg) Manufacturer: Auto Lift
